Removing and installing rollover bar (RB)/soft top operation control module - AR77.39-P-3605KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

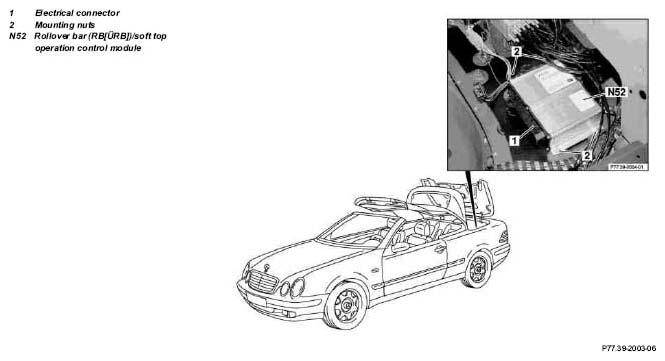

Fig 1: Identifying Rollover Bar (RB)/Soft Top Operation Control Module Remove/Install Components

	Removing, installing
	Injury hazard from rollover bar extending	Extend rollover bar before working in the rollover bar area	AS91.00-Z-0003-01KA
1	Partially open soft top	Leave soft top compartment cover open and soft top bow in upright position
2	Disconnect battery	Installation:  Set timer, code radio
3	Remove rear mounting wall		AR68.74-P-1000KA
4	Disconnect electrical connector (1)
5	Unscrew mounting nuts (2)
6	Remove soft top operation control module (N52)
7	Install in the reverse order
