Removing and installing hydraulic cylinder for soft top compartment cover - AR77.37-P-4175KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

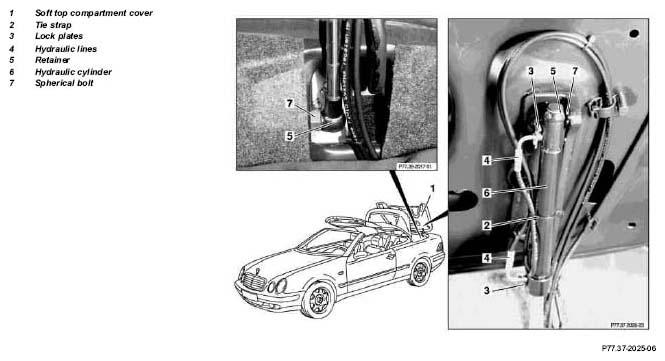

Fig 1: Identifying Hydraulic Cylinder For Soft Top Compartment Cover Remove/Install Components

	Removing, installing
1	Remove inner paneling from soft top compartment cover (1)
2	Open cable strap (2)
3	Secure soft top compartment cover against slamming shut unintentionally
4	Press off lock plates (3) and pull out hydraulic lines (4)	Immediately plug hydraulic lines with plugs , plug connections on hydraulic cylinder with blind plug .
		Plug no. -07	Figure
		Blind plug no. -01	Figure
5	Remove upper and lower retainer (5) from hydraulic cylinder	Turn retainer and pull out upward or downward
6	Remove hydraulic cylinder (6) from spherical bolt (7) at top and at bottom
7	Install in the reverse order
8	Bleed soft top system		AR77.37-P-1000-03KA

Fig 2: Identifying Set Of Plugs (129 589 00 91 00)
