Remove/install |
|
|
 |
Risk of injury caused by moving parts that can pinch, crush or
, in extreme cases even sever
extremities. |
No parts of the body or limbs should be within the operating range of the mechanism when components are in motion. |
AS00.00-Z-0009-01A |
|
Risk of injury
to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning
caused by swallowing hydraulic fluid. |
Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. |
AS00.00-Z-0013-01A |
|
Risk of injury
from roll bar extending |
Extend roll bar before working in the roll bar area |
AS91.00-Z-0003-01KA |
| 1 |
Remove side panelings in left and right rear |
|
AR68.30-P-4780KA |
| 2 |
Close soft top |
Leave soft top bow and soft top compartment lid in upright position |
|
| 3 |

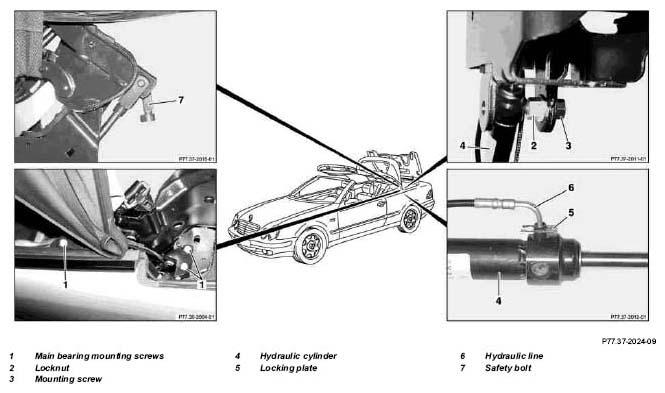

Unscrew mounting screws (1) from main bearing |
Previously mark soft top main bearing on mounting plate to facilitate installation. |
|
| |
|
 |
*BA77.30-P-1001-01A |
| 4 |
Expose hydraulic lines |
If necessary, detach cable strap and electrical lines to prevent lines from damaging. |
|
| 5 |
Lift soft top until hydraulic cylinder is accessible |
|
|
| 6 |
Unclip retaining bolts (7) and pull out |
|
|
| 7 |
Open counternut (2) on mounting screw (3). |
|
*BA77.37-P-1001-01C |
| 8 |
Pull out mounting screw (3). |
Plastic washers are inserted in the hydraulic cylinder mounting hole (4). |
|
| 9 |
Remove hydraulic cylinder (4) from soft top support downward. |
|
|
| 10 |
Press hydraulic cylinder (4) together |
|
|
| 11 |
Press off retainer (5) and pull out hydraulic line (6). |
Immediately plug hydraulic line (6) with stop plug
and connector on hydraulic cylinder (4) with blind plug
. |
|
| |
|
Stop plug No. -07 |
Figure |
| |
|
Blind plug No. -01 |
Figure |
| 12 |
Remove hydraulic cylinder (4). |
|
|
| 13 |
Install in the reverse order |
|
|
| 14 |
Bleed hydraulic system |
|
AR77.37-P-1000-03KA |
| 15 |
Check oil level of hydraulic system |
if necessary, add oil through oil filler screw↓ |
|
 |
|
See operating sheet specifications |
BB00.40-P-0343-00A |
| |
|
Oil filler screw |
*BA77.37-P-1003-01C |
| 16 |
Check for proper function and leakage |
|
|
