Removing and installing retractable draft stop - AR68.50-P-1000KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

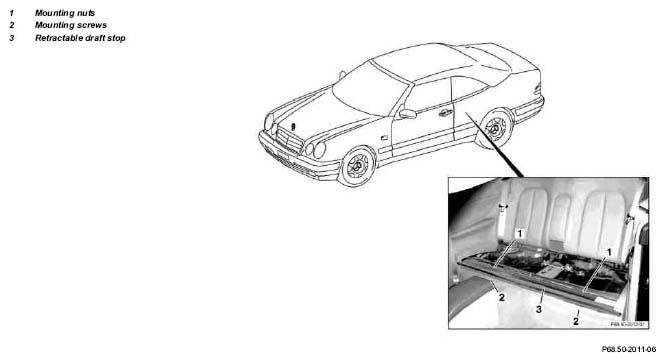

Fig 1: Identifying Retractable Draft Stop Remove/Install Components - Model 208.435 /444 /445 /447 /448 /465 /470

	Removing, installing
1	Remove side paneling in rear	On left and right side of vehicle	AR68.30-P-4780KA
2	Unscrew mounting nuts (1)
3	Loosen mounting screws (2)	Slightly press floor covering to side, do not unscrew screw completely.
4	Remove retractable draft stop upward
5	Install in the reverse order
