Removing and installing control cable for soft top compartment cover rear paneling - AR68.30-P-1650KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

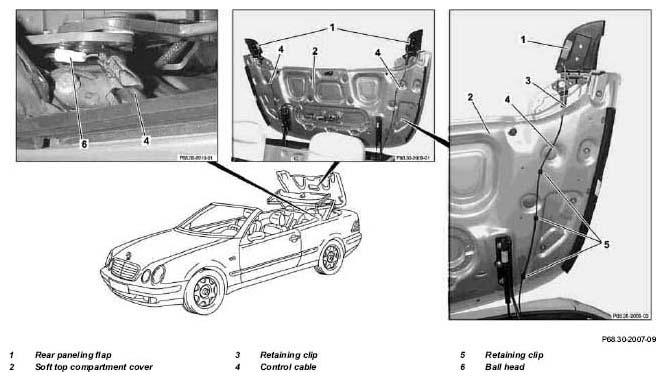

Fig 1: Identifying Soft Top Compartment Cover Rear Paneling Remove/Install Components

	Removing, installing
1	Completely open soft top	Leave soft top compartment cover (2) open
2	Remove inner paneling from soft top compartment cover
3	Remove retaining clip (3) from control cable (4)
4	Unhook control cable (4) from rear paneling flap (1)	Installation:  Slightly pull control cable (4) downward until it is tensioned, then install retaining clip (3)
5	Press control cable out of clips (5)	Do not kink control cable
6	Remove ball head (6) from mount on main bearing
7	Unscrew mount from control cable (4) in area of soft top main bearing
8	Loosen control cable (4) in area of soft top compartment and remove
9	Install in the reverse order	Installation:  Check adjustment, correct if necessary.
