Removing and installing center air nozzle - AR68.10-P-1150K

MODEL 208

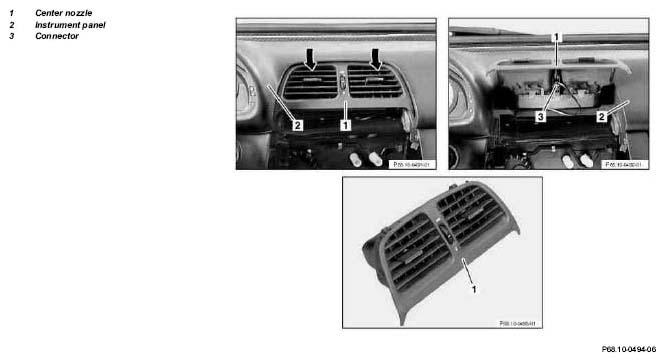

Fig 1: Identifying Center Air Nozzle Remove/Install Components

	Removal, installation
1	Remove center console		AR68.20-P-2000K
2	Pull out center nozzle (1)	To remove pull down catch (arrows) with small screwdriver
3	Disconnect connector (3) and lay down air nozzle (1)
4	Reinstall in opposite order
