Removing and installing ashtray housing at front of center console - AR68.20-P-2400K
MODEL 208

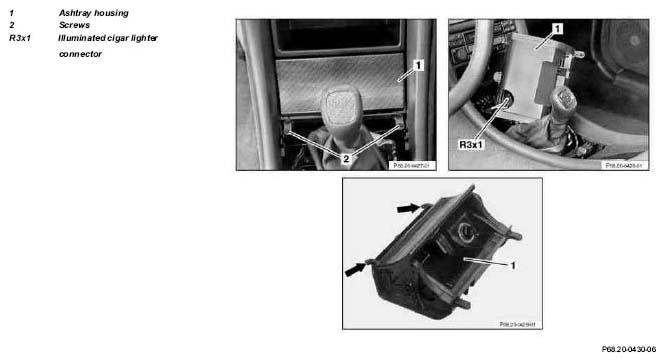

| Removal, installation | |||
| 1 | Remove cover on shift lever | AR68.20-P-2310K | |
| 2 | Unscrew screws (2) | ||
| 3 | Pull out ashtray housing (1) and disconnect connector (R3 x 1) on ashtray housing (1) | ||
| 4 | Remove ashtray housing (1) | ||
| 5 | Reinstall in opposite order |
