Disassembling and reassembling center console - AR68.20-P-2150K

MODEL 208

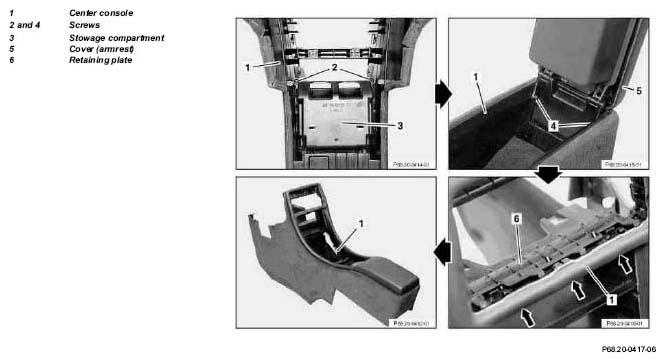

Fig 1: Identifying Center Console Disassemble/Reassemble Components

	Disassembling and reassembling
1	Remove center console		AR68.20-P-2000K
2	Lay center console (1) down on suitable surface and unscrew screws (2)
3	Remove stowage compartment (3)	Assembling:  Arrest stowage compartment (3) at top in center console (1)
4	Unscrew screws (4) and remove cover (5)	Assembling:  Insert lugs on hinge in center console
5	Unscrew screws (arrows) and remove retaining plate (6)
6	Reassemble in opposite order
