Remove/install electronic accelerator actuator with flap connection - AR30.20-P-1262A

MODEL 129, 163, 170, 171, 202, 203, 208, 209, 210, 215, 220, 230, 463 (except, 215.376 /378 /379, 220.176 /876 /178 /878 /179, 230.476 /477 /479)

Mass air flow sensor removed

Shown on engine 112 in model 210

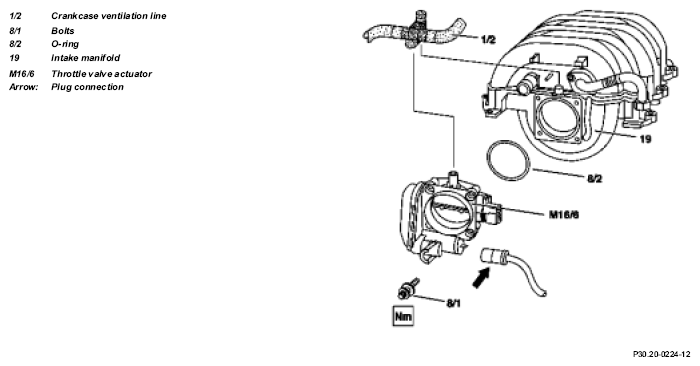

Fig 1: Identifying Electronic Accelerator Actuator Remove/Install Components With Flap Connection

	Remove/install
1	Detach crankcase vent line (1/2) from intake manifold (19)
2	Disconnect electrical connector (arrow)	Pull catch backwards.
3	Remove bolts (8/1) and throttle valve actuator (M16/6)	Installation:  Replace O-ring (8/2).
4	Install in the reverse order
