Oil temperature sensor, location - GF32.50-P-4120-01SC

Models 215, 220

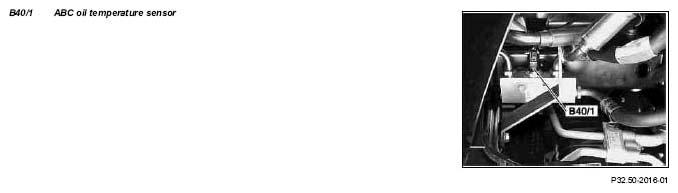

Fig 1: Identifying ABC Oil Temperature Sensor

G04849305
