AIRmatic, location of pneumatic/hydraulic components - GF32.22-P-0003-02A

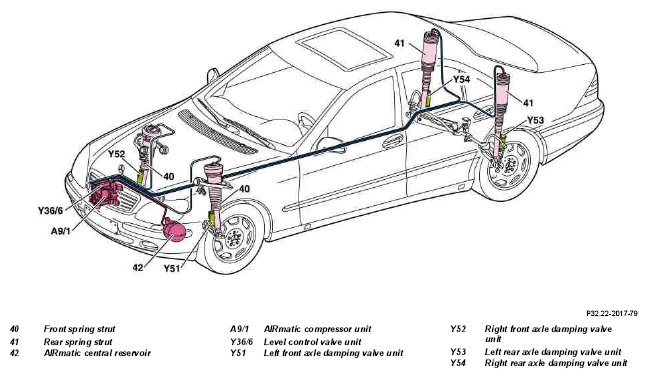

Fig 1: Identifying Pneumatic/Hydraulic Components Location

G04849237
