Suction restrictor valve, location/task/function - GF32.50-P-4100A
MODEL 215, 220, 230 up to 28.2.06 with CODE (487) Active body control (ABC)

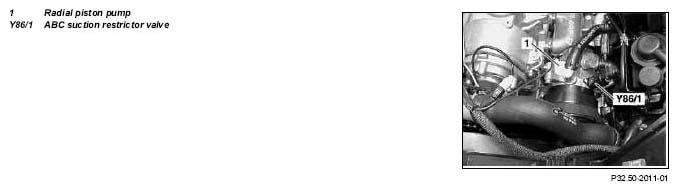

| Suction restrictor valve, location | At radial piston pump of tandem pump | ||
| Suction restrictor valve, task | Regulating the quantity drawn in by the radial piston pump | ||
| Suction restrictor valve, function | Proportioning valve (closed when de-energized) |
