Suspension strut design - GF32.25-P-1000-02B

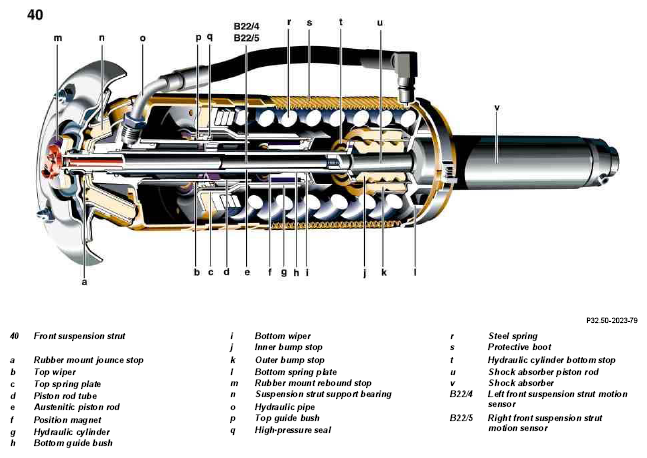

Fig 1: Sectional View Of Front Suspension Strut
G04849260

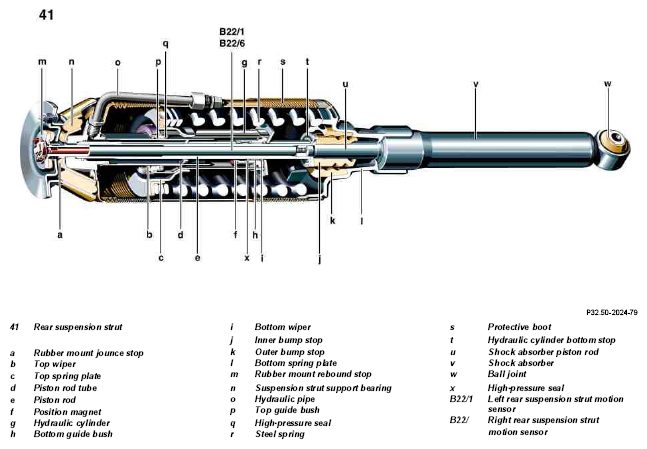

Fig 2: Sectional View Of Rear Suspension Strut
G04849261

The suspension strut forms a unit comprising hydraulic cylinder, steel spring and shock absorber.

The suspension strut motion sensor is integrated in the hydraulic cylinder.

The shock absorber is a twin-tube shock absorber with gas preload.
