Pressure sensor, location / task / function - GF32.22-P-4500A: Notes

MODELS 211, 240 with CODE (489a) Airmatic (semi-active air suspension)

MODEL 220 except CODE (487a) Active body control (ABC)

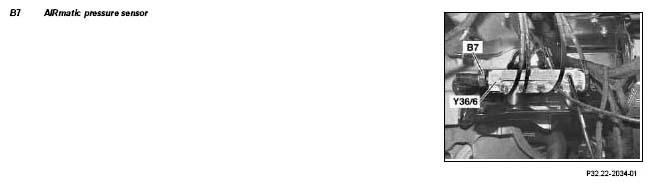

Fig 1: Identifying AIRmatic Pressure Sensor
G04849254
  Pressure sensor, location Model 211 GF32.33-P-3102-01E
    Model 220 GF32.33-P-3102-01A
    Model 240 GF32.33-P-3102-01MB
  Pressure sensor, task Measures the system pressure and used to carry out plausibility checks.
  Pressure sensor, function   GF32.22-P-4500-02A
