Pressure reservoir, location/task/function - GF32.50-P-4220A: Notes
MODEL 215, 220, 230 up to 28.2.06 with CODE (487) Active body control (ABC)

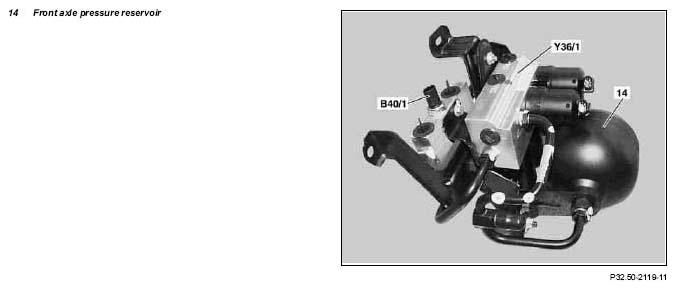

| Pressure reservoir, location | Models 215, 220 | GF32.50-P-4220-01SC | |
| Model 230 | GF32.50-P-4220-01SL | ||
| Pressure reservoir, task | Front and rear axle: Storing oil at a pressure of about 200 bar in order to make available the energy required as necessary. Return flow: Accommodating the oil and reducing pressure peaks in the return flow. | ||
| Pressure reservoir, function | GF32.50-P-4220-03A |
