Removal & Installation
- Raise and support vehicle. Remove wheels.

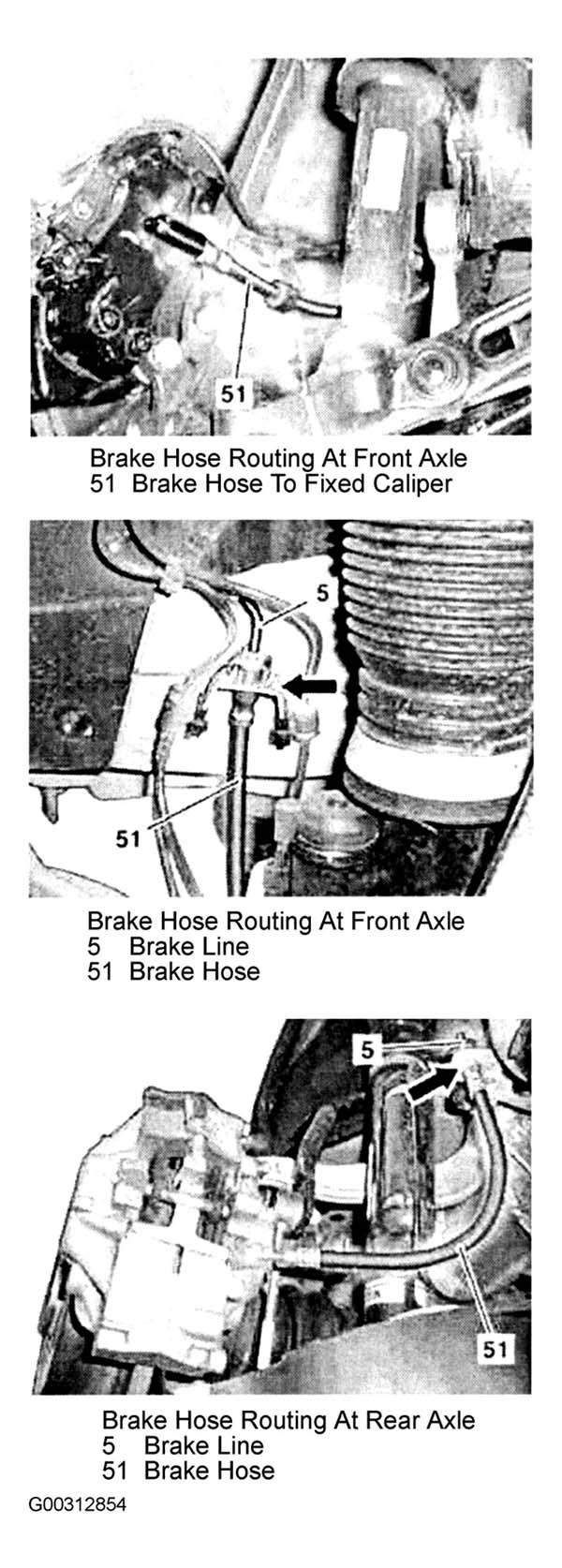

- Remove brake line (5) from brake hose (51) using brake line wrench and seal off openings immediately with plugs. See Fig 1
. Counterhold at 2 flats on brake hose using open ended wrenches if necessary.
- Remove brake hose from brake caliper using brake line wrench. On front brake calipers, pull out brake hose through rubber grommet at bracket.
- Installation is reverse of removal procedure. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS
.
- Bleed brake system. See BLEEDING BRAKE SYSTEM
.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
