Removal & Installation
NOTE:
Numbers and letters in parenthesis refer to letters and numbers in illustrations.

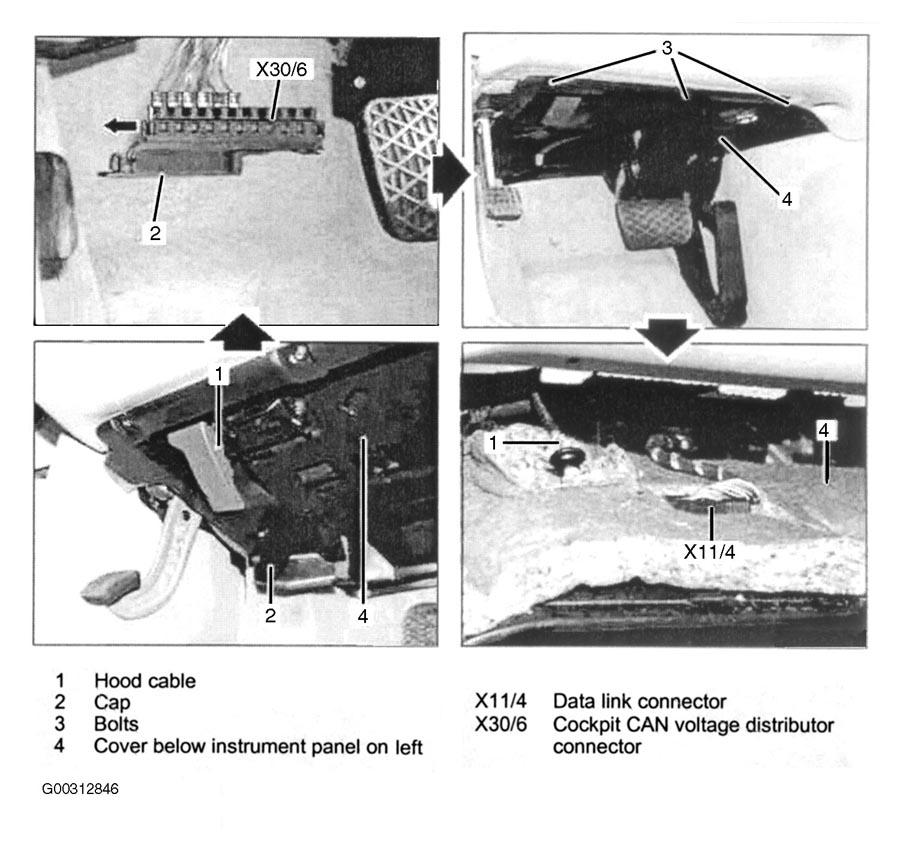

- Remove bolts (3). See Fig 1 .
- Fold down cover (4).
- Remove hood release lever (1).
- Remove cockpit potential distributor connector (CAN) (X30/6) and unlock cap (2). Press cockpit CAN voltage distributor connector (X30/6) through cover.
- Remove data link connector (X11/4) from cover.
- Remove cover.
- Installation is the reverse of removal. Ensure air guide is seated properly.
