Telephone (GSM), location of components - GF82.70-P-0003-01K

Model 208 as of 1.6.98 up to 31.5.00 with codes 316/317

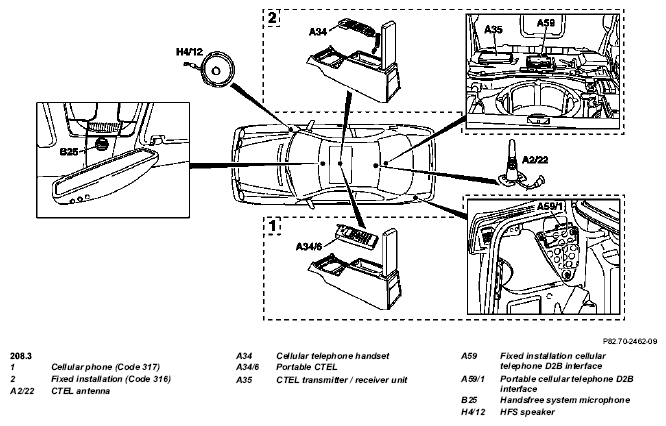

Fig 1: Identifying Telephone Components Location - 208.3

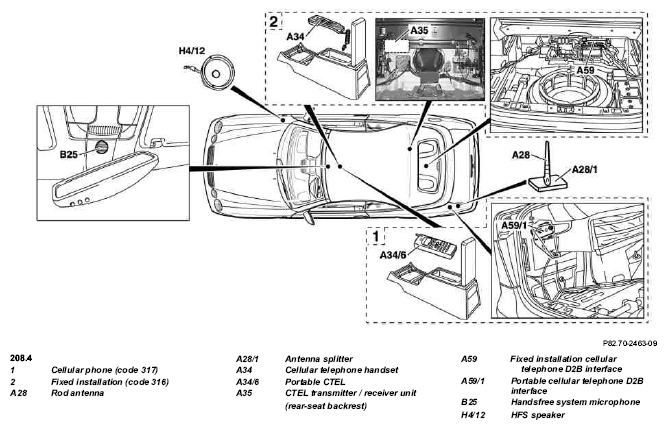

Fig 2: Identifying Telephone Components Location - 208.4
