Telephone (D-network), block diagram - GF82.70-P-0003-06AA

Fixed installation without voice control system (shown on model 203)

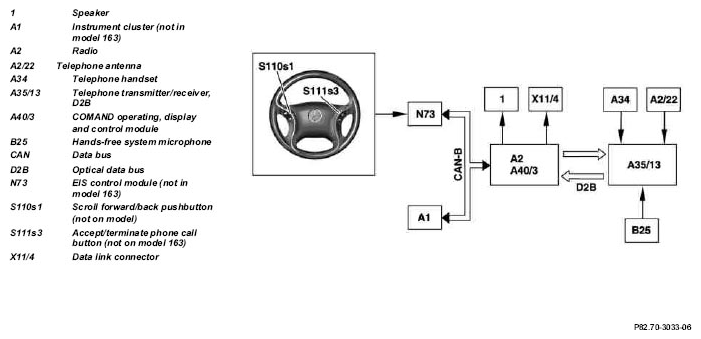

Fig 1: Identifying Telephone (D-Network), Block Diagram - Fixed Installation Without Voice Control System (Shown On Model 203)
G04633621

Fixed installation with voice control system (shown on model 203)

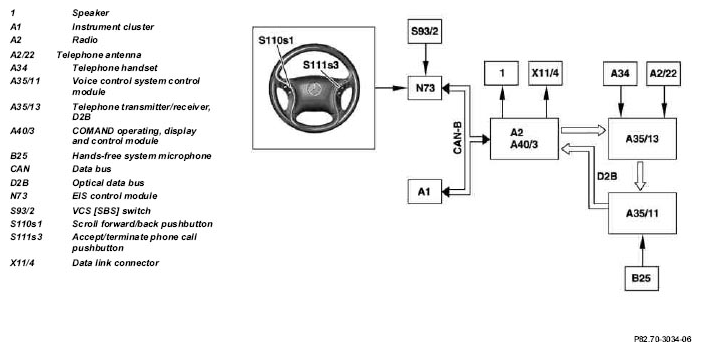

Fig 2: Identifying Telephone (D-Network), Block Diagram - Fixed Installation With Voice Control System (Shown On Model 203)
G04633622
