Telephone (D-Network), location of components - GF82.70-P-0003-01PA

Model 203 as of 1.7.02 with code 853/854

Permanently installed telephone, illustrated on model 203.0

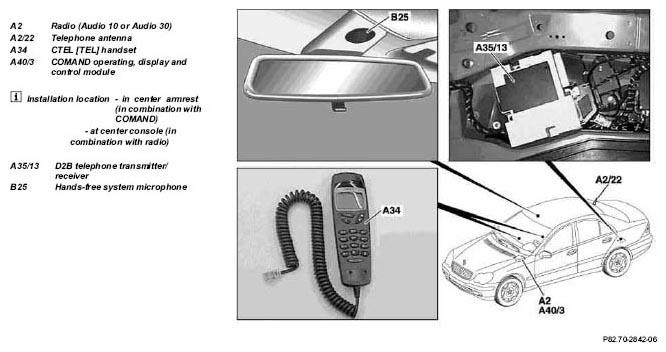

Fig 1: Identifying Telephone (D-Network) Components Location - Permanently Installed Telephone Illustrated On Model 203.0

Loudspeaker output for the hands-free system is accomplished via the entire loudspeaker system

Fig 2: Identifying Telephone (D-Network) Components Location - Portable Cellular Telephone Illustrated On Model 203.0

Portable cellular telephone, illustrated on model 203.0

The stowage compartment in the center armrest has been modified. The cover can be unlocked at the driver and passenger sides and opens toward the opposite side of the vehicle.
