Telediagnosis push-button switch, location/task - GF82.95-P-4105PM
MODELS 203.0 /2 /7 with CODE (359) TELE AID emergency call system, lowcost

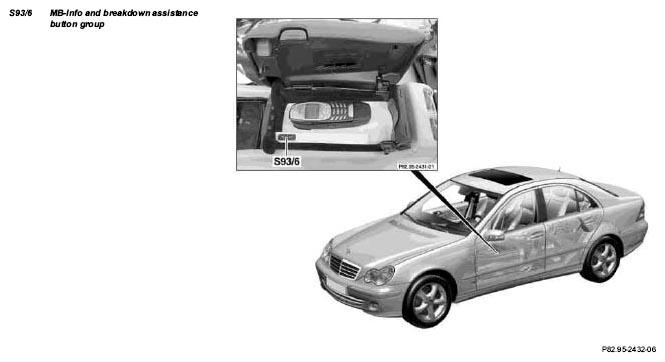

Fig 1: Identifying MB-Info And Breakdown Assistance Button Group - Models 203.0 /2 /7 With Code (359)
| Telediagnosis push-button switch, location | The MB-Info and breakdown assistance button group (S93/6) is located on the center console to the left of the UPCI portable CTEL bracket (Universal Portable CTEL Interface) (A34/15). | ||
| Telediagnosis push-button, task | The MB-Info and breakdown assistance button group (S93/6) can be pressed to send out a roadside assistance call or an MB information call. Each of these functions has an LED indicating its operational readiness. |
