Remove contacts from Multi Contact Point (MCP) coupling - AR00.19-P-0120-09A

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig 3: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Fig 4: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Fig 5: Identifying MCP 2.8 / FL Blade. 2.8 (220 589 01 99 59)

Fig 6: Identifying MCP 2.8 / Fl Blade. 2.8 / JPT / SPT (000 589 13 99 30)

Secondary release on version with lock tab (MCP)

Shown on a 4-pin MCP coupling

Fig 7: Secondary Release On Version With Lock Tab (MCP) - Shown On A 4-Pin MCP Coupling

Secondary release on version with coupling cap (MCP)

Shown on a 3/3-pin MQS/MCP coupling

Fig 8: Secondary Release On Version With Coupling Cap (MCP) - Shown On A 3/3-Pin MQS/MCP Coupling

Secondary release on version with retaining cage (MCP)

Using a suitable tool (1), slide retaining cage (2) into pre-locking position in direction shown by arrow.

Shown on a 47-pin MQS or MCP coupling

Fig 9: Secondary Release On Version With Retaining Cage (MCP) - Shown On A 47-Pin MQS Or MCP Coupling

Unpin female contacts from coupling (MCP)

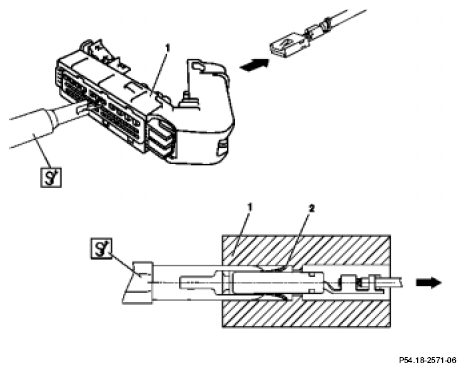

Insert blade holder with clamping pliers and MCP 2.8/Fl blade 2.8 or MCP 2.8/Fl. 2.8/JPT/SPT blade from the front through the openings in the contact cavity of the coupling (1).
This step compresses the spring shackles (2) on the female contact.
A slight tug on the corresponding cable will remove the female contact (1) from the coupling.

Fig 10: Unpinning Female Contacts From Coupling (MCP)
