Remove contacts from Micro Timer 3 coupling - AR00.19-P-0120-06A

Fig 1: Identifying Wiring Harness Repair Kit, Supplement For Passenger Cars (220 589 04 99 00)

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig 3: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Fig 4: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Fig 5: Identifying MT 3 Blade (220 589 01 99 54)

Secondary release on version with sliding plate (MT 3)

Shown on 16-pin MT 3 coupling

Fig 6: Secondary Release On Version With Sliding Plate (MT 3) - Shown On 16-Pin MT 3 Coupling

Secondary release on version with locking slider (MT 3)

Shown on 4-pin MT 3 and JPT coupling

Fig 7: Secondary Release On Version With Locking Slider (MT 3) - Shown On 4-Pin MT 3 And JPT Coupling

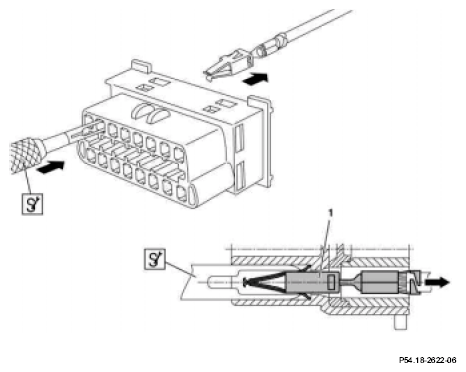

Unpin the female contact from the coupling (MT 3)

Insert blade holder with clamping pliers and MT 3 blade from front side through openings on contact cavity of coupling.
Do not damage webs between contact cavity and openings for release tool.

This pushes together the springs at the female contact (1).

Fig 8: Unpinning Female Contact From Coupling (MT 3)
A slight tug on the corresponding cable will remove the female contact from the coupling.
