Remove contacts from 2.5 solder contact coupling round plug contact - AR00.19-P-0120-17A

Fig 1: Identifying Wiring Harness Repair Kit, Supplement For Passenger Cars (220 589 04 99 00)

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig 3: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Fig 4: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Fig 5: Identifying RK 2.5 Blade Solder Contact (220 589 01 99 53)

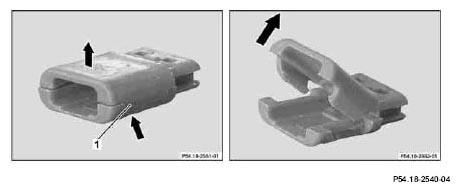

Secondary release on version with slide valve (RK 2.5 solder contact)

Insert a suitable tool under the slide valve cap (1).
Using a suitable tool, press the slide valve out of the last detent in direction shown by arrow.

Shown on a 4-pin RK 2.5 solder contact coupling

Fig 6: Secondary Release On Version With Slide Valve (RK 2.5 Solder Contact) - Shown On A 4-Pin RK 2.5 Solder Contact Coupling

Secondary release on version with retaining clamp (RK 2.5 solder contact)

Shown on a 2-pin RK 2.5 solder contact coupling

Fig 7: Secondary Release On Version With Retaining Clamp (RK 2.5 Solder Contact) - Shown On A 2-Pin RK 2.5 Solder Contact Coupling

Unpin contact from coupling (RK 2, 5 solder contact)

Insert blade holder with clamping pliers and blade for RK 2.5 solder contact from the back side into the cable duct of the coupling.
Align the sleeve of the blade for RK 2.5 solder contact with the spring shackle (1) in the coupling. This step presses the spring shackle (1) in the coupling into position.
Now gently pull the female contact, together with the blade holder, with clamping pliers and blade for RK 2.5 solder contact to remove them from the back of the coupling.

Fig 8: Unpinning Contact From Coupling (RK 2, 5 Solder Contact)
