Removing, installing rear seat backrest - AR91.12-P-1620PC

MODEL 203.0 except CODE (287a) Through-loading feature

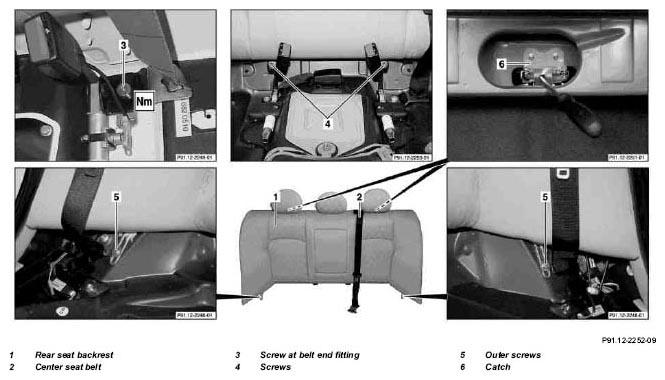

Fig 1: Identifying Rear Seat Backrest Components - Model 203.0 Except Code (287A) Through-Loading Feature

	Removing, installing
1	Remove rear seat cushion		AR91.12-P-1020PC
2	Unscrew the screw (3) at the center rear seat belt end fitting	Installation:  Ensure that the belt end fitting engages.
		Screw at belt end fitting	*BA91.40-P-1001-01A
		Torx bit set	Fig 2
3	Unscrew screws (4)
4	Unscrew bolts (5)
5	Release rear seat backrest (1) at the catch (6)
6	Disconnect head rest pneumatic connection	Lever pneumatic connection off with WAF 7 open-ended wrench.
7	Remove rear seat backrest (1)
8	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 203
BA91.40-P-1001-01A	Screw on belt end fitting	Nm	30

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
