Removing, installing front door side airbag unit - AR91.60-P-0690P
MODEL 203
| Removing, installing | |||
|---|---|---|---|
| Risk of injury when carrying out test or repair work on airbag or emergency belt tensioner units | Store airbag units with expulsion area on top, do not subject to temperatures above 100°C. Interrupt power supply when working on such units | AS91.00-Z-0001-01A | |
| Important instructions for performing repair, body work and welding on vehicles with airbag and emergency belt tensioner units | Models 203, 215, 220 | AH91.00-P-0002-01M | |
| Evaluation of airbag and emergency belt tensioner units in vehicles involved in an accident | Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 203, 208, 210, 215, 220, 463, 638, 901, 902, 903, 904 | AH91.00-P-0006-01B | |
| Legal regulations concerning the handling and storage of airbag and emergency belt tensioner units | Models 124, 129, 140, 163, 168, 170, 202, 203, 208, 210, 215, 220, 314, 316, 318, 461, 463, 638, 901, 902, 903, 904, 950, 952, 953, 954, 970, 972, 974, 975, 976 | AH91.00-P-0004-01A | |

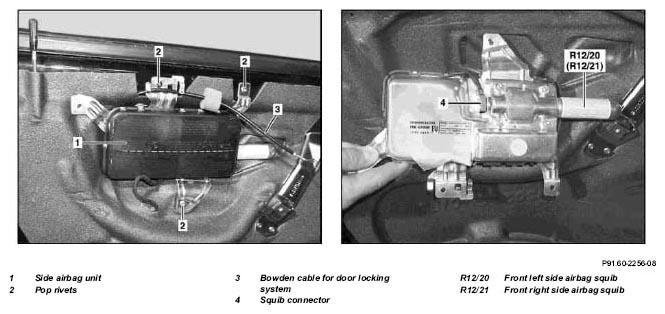

| 1 | Remove door lining from front door | AR72.10-P-1000P | |
| 2 | Drill out or cut out pop rivets (2) | ||
| 3 | Unhook Bowden cable (3) | ||
| 4 | Release connector (4) and disconnect | ||
| 5 | Remove airbag unit (1) | If the airbag unit (1) is replaced, the defective unit must be disposed of properly: ↓ | |
| Notes on disposal of airbag and emergency belt tensioner units | OS91.00-P-0001-01A | ||
| Make airbag units unusable | AR91.60-P-0611A | ||
| 6 | Install in the reverse order | ||
| 7 | Read out diagnostic trouble code memory | ||
| Connect STAR diagnosis tool, read out diagnostic trouble code memory and erase | AD00.00-P-2000-04A |
