Removing and installing rear center safety belt - AR91.40-P-0683PA

MODEL 203.2

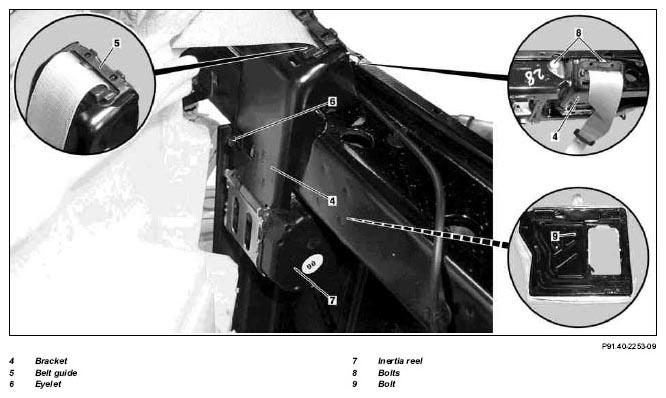

Fig 1: Identifying Rear Center Safety Belt Remove/Install Components - Model 203.2

	Removing, installing
	The spring in the inertia reel can pose an injury hazard  when the tension is released and it uncoils.	Never disassemble inertia reels	AS91.00-Z-0002-01A
1	Release rear seat cushion and fold forwards
2	Remove rear seat backrest		AR91.12-P-1720PA
3	Remove left rear seat backrest covering		AR91.18-P-1874PA
		Loosen top half of the rear seat backrest cover Only dismantle rear seat backrest up to "remove felt covering".
4	Unhook upholstery wire for rear seat backrest cover from eyelet (6) in the upholstery
5	Unscrew bolts (8).
6	Remove holder (4)
7	Unclip seat belt guide (5) from holder (4)
8	Pull safety belt out of holder (4)	Installation:  safety belt can only reeled out in a certain position (installation position).
9	Unscrew screw (9) at inertia reel (7)	Screw at rear inertia reel	*BA91.40-P-1006-01A
10	Remove automatic belt reel	Noises from the automatic belt reel when rolling up belt are normal. The only available response to negative customer feedback regarding unacceptable noise levels is to replace the safety belt assembly in its entirety. Never use oil or grease to eliminate noises. Inertia reels that have been opened are no longer under warranty!
11	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 203
BA91.40-P-1006-01A	Bolt to rear inertia reel	Nm	30
