Front seat adjustment switch group, location/design - GF91.29-P-2112PP

MODELS 203.0 /2 /7 with CODE (275c) Electrically adjustable driver seat, steering column and exterior mirrors with memory with CODE (242b) Electrically adjustable front passenger seat with memory

Shown on model 203.0 up to 30.6.01 at driver's side

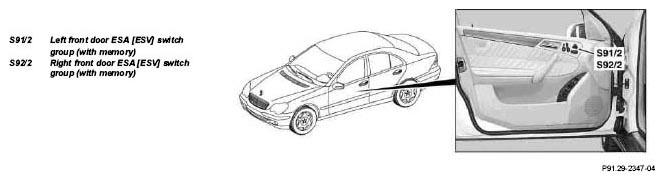

Fig 1: Identifying Front Seat Adjustment Switch - Shown On Model 203.0 Up To 30.6.01 At Driver'S Side
G04738122
  Front seat adjustment switch group, location The left front door seat adjustment switch group (Memory) (S91/2) and the right front door seat adjustment switch group (Memory) (S92/2) are in the door paneling near the interior door unlocking mechanism.
  Front seat adjustment switch group, design   GF91.29-P-2100-04PP
