Front seat adjustment motor group with memory, location/design - GF91.29-P-2105PP

MODELS 203.0 /2 /7 with CODE (275c) Electrically adjustable driver seat, steering column and exterior mirrors with memory with CODE (242b) Electrically adjustable front passenger seat with memory

Shown on driver seat in model 203.0 up to 23.4.04

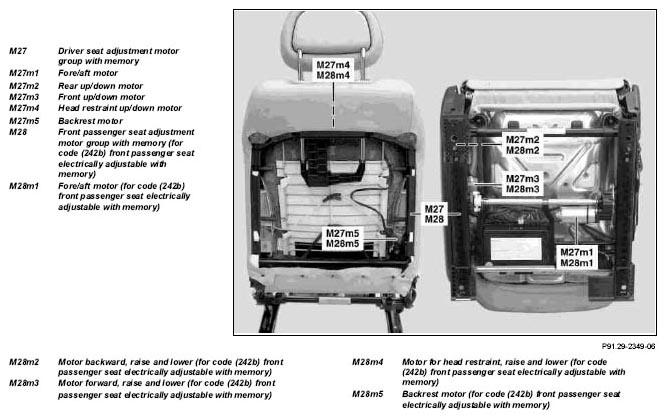

Fig 1: Identifying Front Seat Adjustment Motor Group With Memory - Shown On Driver Seat In Model 203.0 Up To 23.4.04
G04738117
  Front seat adjustment motor group with memory, location The driver seat adjustment motor group with memory (M27) and front passenger seat adjustment motor group with memory (M28) are each located in the respective seat frame.
  Front seat adjustment motor group with memory, design The driver seat adjustment motor group with memory (M27) consists of the motors (M27m1, M27m2, M27m3, M27m4 and M27m5), the front passenger seat adjustment motor group with memory (M28) consists of the motors (M28m1, M28m2, M28m3, M28m4 and M28m5).
