Remove and install multifunction sensor - AR83.40-P-6730P
MODEL 203 with CODE (581b) Convenience automatic air conditioning

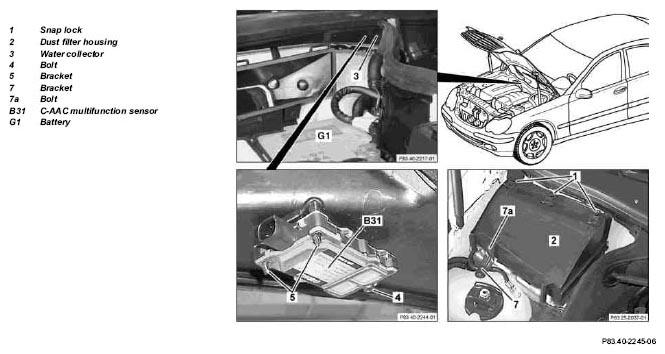

Shown in model 203.0
| Removing, installing | |||
|---|---|---|---|
| Injury Hazard! Windshield wiper mechanism can pinch, crush or, in extreme cases, even sever extremities | Always remove ignition key when working on windshield wiper mechanism | AS82.30-Z-0001-01A | |
| Risk of explosion from gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead-acid batteries | No fire, sparks, naked flames or smoking. Wear acid-resistant gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 1 | Open engine hood | ||
| 2 | Open snap locks (1) | ||
| 3 | Loosen bolt (7a) | ||
| 4 | Turn bracket (7) slightly | ||
| 5 | Remove dust filter housing (2) | ||
| 6 | Unscrew bolt (4) | Figure | |
| 7 | Remove C-AAC multifunction sensor (B31) from the water collector (3) | ||
| 8 | Disconnect connector from multi-function sensor convenience automatic air conditioning (B31) | ||
| 9 | Install in the reverse order |
