Remove, install air cleaner housing - AR09.10-P-1150PR

ENGINE 111.951 in MODEL 203.035 /235 /735

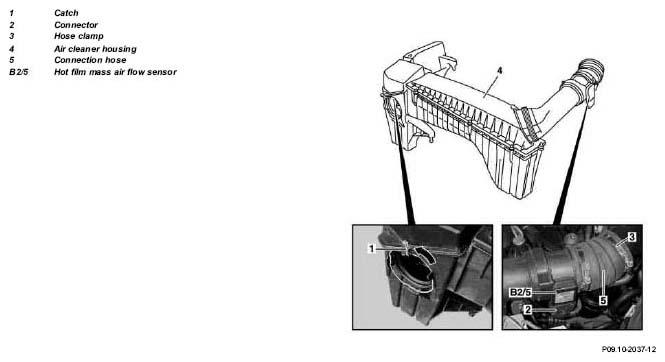

Fig 1: Identifying Air Cleaner Housing Remove/Install Components - Engine 111.951

	Removing, installing
1	Turn catch (1) of the air inlet pipe (arrow)
2	Unplug connector (2) of hot film mass air flow sensor (B2/5)
3	Slacken hose clamp (3)	Installation:  Inspect hose clamp, replace if necessary.
4	Pull air cleaner housing (4) up and off and remove	Removal:  Pull back air inlet pipe for this step. Installation:  Moisten rubber retainer of the air cleaner housing with lubricant. Inspect connection hose (5), replace if necessary.
5	Install in the reverse order
