Retrofitting coolant line - AN20.20-P-0001-01P

COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1019-02A Hose clamp pliers (length 210 mm, clamping range 80 mm)

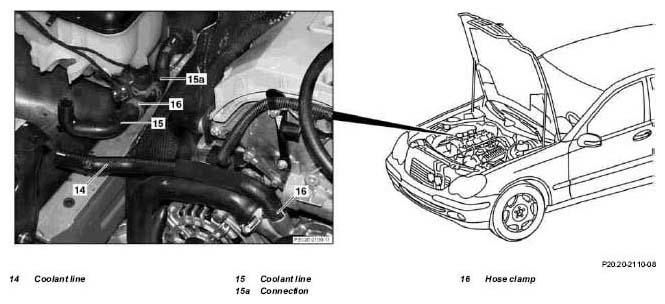

Fig 1: Identifying Coolant Lines, Connection And Hose Clamp
G04734191
  1. Install coolant line (14) on fitting and align
  2. Install coolant line (15) on fitting (15a) and align IMPORTANT Replace fitting (15a) only if damaged.
  3. Install hose clamps (16).

    COMMERCIALLY AVAILABLE TOOLS Hose clamp pliers (length 210 mm; adjustment range 80 mm)
