Remove/install steering column module - AR54.25-P-2802PQ

MODEL 203 as of 24.4.04, 209 as of 1.6.04

Shown on model 203

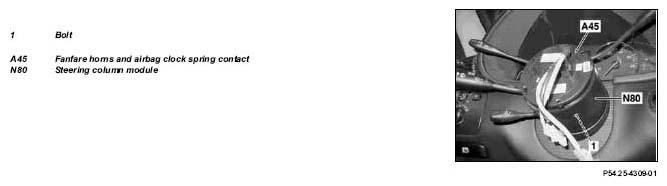

Fig 1: Identifying Steering Column Module Remove/Install Components - Model 203 As Of 24.4.04, 209 As Of 1.6.04

	Remove/install
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags and ETR units	Model 169, 171, 199, 203, 209, 211, 215, 219, 220, 230, 240 Model 463.243/244/245/246/247/248/249/250/254/270/271/309/322/323/ 332/333	AH91.00-P-0002-01M
1	Remove transmitter key from electronic ignition switch control unit
2	Remove steering wheel		AR46.10-P-0100P
3	Do not twist fanfare horns and airbag clock spring contact (A45)
4	Unscrew bolt (1) fully
5	Detach steering column module (N80)
6	Install in the reverse order
