Preparing center roof paneling - AR65.10-P-1000-03PA
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-02A | Hole punching pliers, dia. 7 mm |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

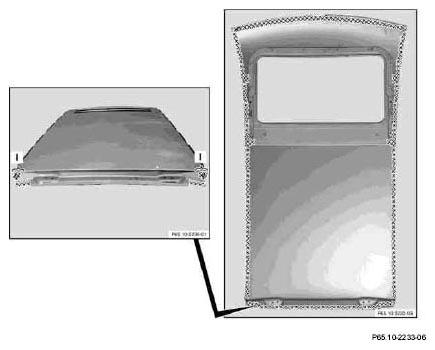

- Punch holes with 7 mm dia. bit (area I).
- Grind connection surfaces down to bare metal in shaded areas. Grind spot welding flanges down to bare metal on both sides Coat insides of spot welding flanges with zinc dust paint.
