Install and weld in center roof paneling - AR65.10-P-1000-04PA

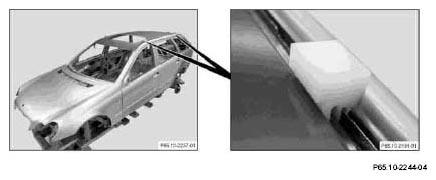

Fig 1: Identifying Spacer Blocks (203 589 07 23 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1003-01A	Electrode miller
WH58.30-Z-1003-02A	Clamping pliers
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1024-04A	Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 rpm)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-02A	Inert gas welder
WE58.40-Z-1002-02A	Spot welder
WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1003-03A	Angle grinder (electric/pneumatic)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	Sealant	A 001 989 63 20
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

1. Apply MB body sealant (arrows).
   Fig 2: Identifying MB Body Sealant Applications Areas


2. Install, fit and fasten roof paneling.

   Align with spacer blocks.

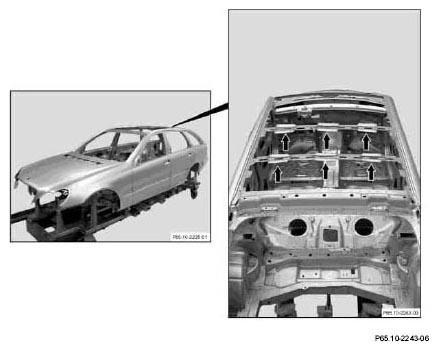

   Fig 3: Identifying Spacer Blocks

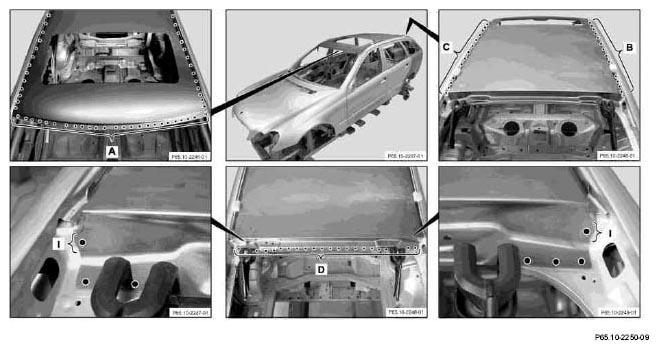

   Fig 4: Identifying Roof Paneling - Areas A-D


3. Roof paneling (areas A - D).
4. Roof paneling (areas I).

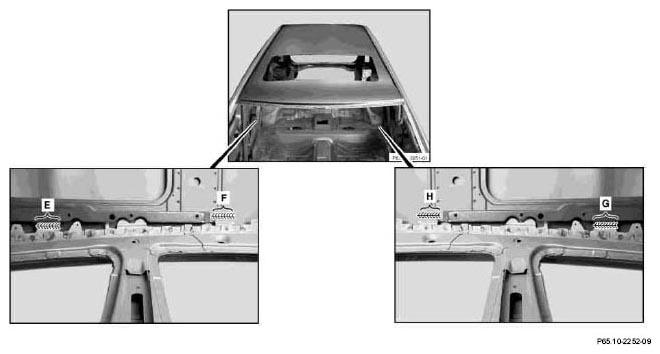

   Fig 5: Identifying Center Roof Paneling - Areas E-H


5. Center roof paneling from inside of vehicle (areas E - H).
