Install and weld in center roof paneling - AR65.10-P-1000-04P

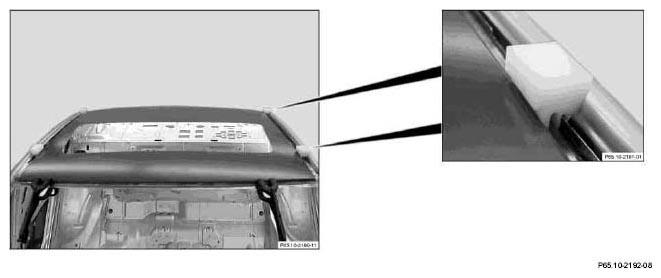

Fig 1: Identifying Spacer Blocks (203 589 07 23 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1003-01A	Electrode miller
WH58.30-Z-1003-02A	Clamping pliers
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1024-04A	Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 rpm)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-02A	Inert gas welder
WE58.40-Z-1002-02A	Spot welder
WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1003-03A	Angle grinder (electric/pneumatic)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	Sealant	A 001 989 63 20
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

1. Apply MB body sealing compound (areas I - N).

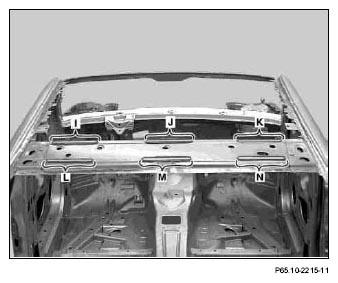

   Fig 2: Identifying MB Body Sealing Compound - Areas I-N

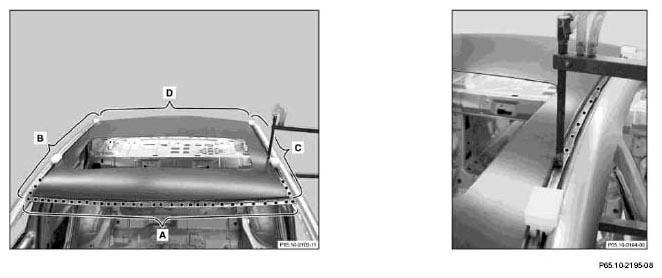

   Fig 3: Identifying Roof Paneling Fasteners


2. Fit and fasten roof paneling.

   Align using spacer blocks and attach using clamping pliers.

   Fig 4: Identifying Roof Paneling - Areas A-D


3. Roof paneling (areas A - D).

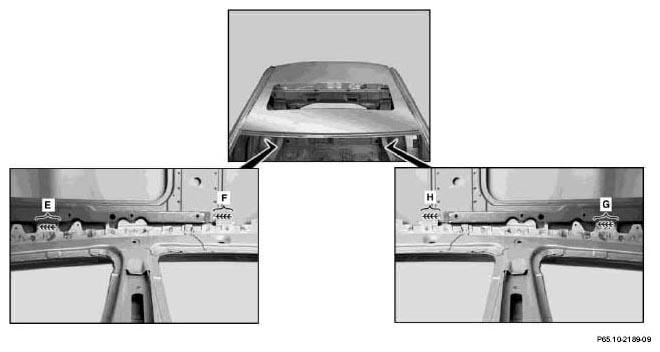

   Fig 5: Identifying Center Roof Paneling - Areas E-H


4. Center roof paneling (areas E - H).
5. Clean weld joints with wire brush.
