Perform vehicle handover - AR00.20-P-0006R

MODEL 203, 209, 230

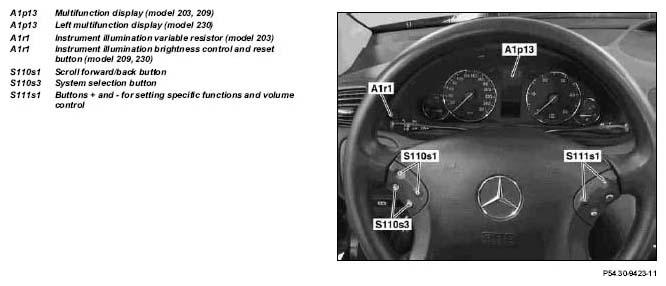

Fig 1: Identifying Steering Wheel Controls And Instrument Cluster Display

	Adjust
1	Turn key in ignition switch to position "1".
2	Press system selection button (S110s3) repeatedly, until the multifunction display (A1p13) shows the "Kilometer reading" basic display
3	Briefly press variable resistor or brightness control (A1r1) 3 times	A signal tone can be heard and the "Voltage indicator" is shown in the multifunction display (A1p13).
4	Turn key in ignition switch to position "2".
5	Press lower scroll forward/back button (S110s1)	The "Service indicator" appears in the multifunction display (A1p13).
6	Briefly press variable resistor or brightness control (A1r1) 1 time	The "Oil type" menu appears in the multifunction display (A1p13).
7	Using the + and - buttons for setting specific functions and volume control (S111s1), select the "Vehicle handover" menu item
8	Press upper scroll forward/back button (S110s1) to confirm	The multifunction display (A1p13) then shows "Confirm vehicle handover: Press R for 3 s".
9	Press and hold variable resistor or brightness control (A1r1) for 3 s	The maintenance computer is reset and the multifunction display (A1p13) shows the message "Service confirmed".
10	Press upper scroll forward/back button (S110s1)	The "Service indicator" appears in the multifunction display (A1p13).
11	Press upper system selection button (S110s3)	The multifunction display (A1p13) shows the "Kilometer reading" basic display.
12	Turn key in ignition switch to position "0".
