Removal & Installation
NOTE:
Numbers and letters in parenthesis refer to letters and numbers in illustrations.
- Raise and support vehicle.
- Fold up rear seat cushion and remove cover (1). See Figure .

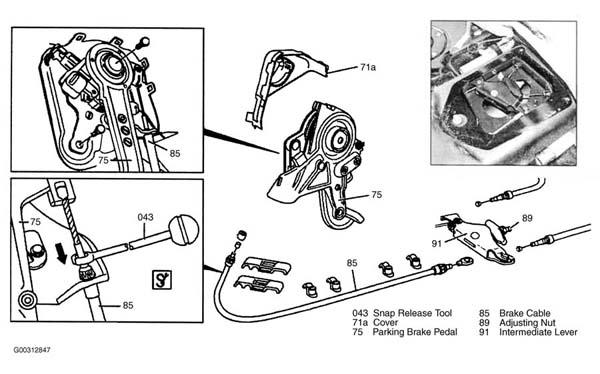

- Loosen adjusting nut (89). See Fig 1 .

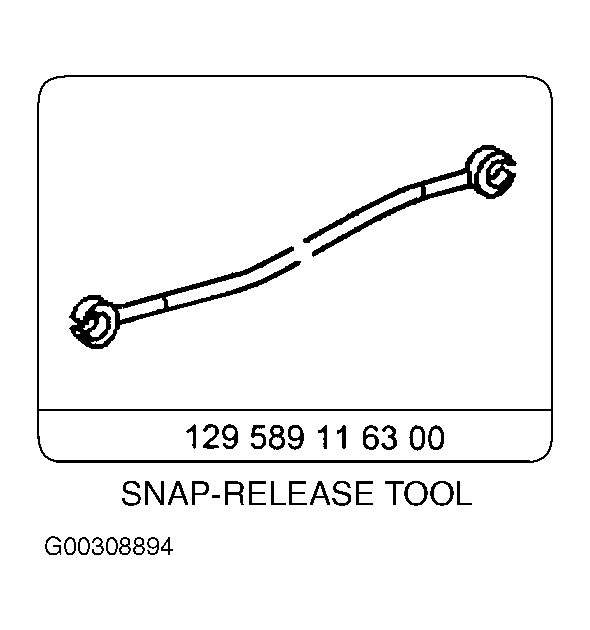

- Remove brake cable (85) at intermediate lever (91) and detach at intermediate lever housing using snap-release tool. See Fig 2 .

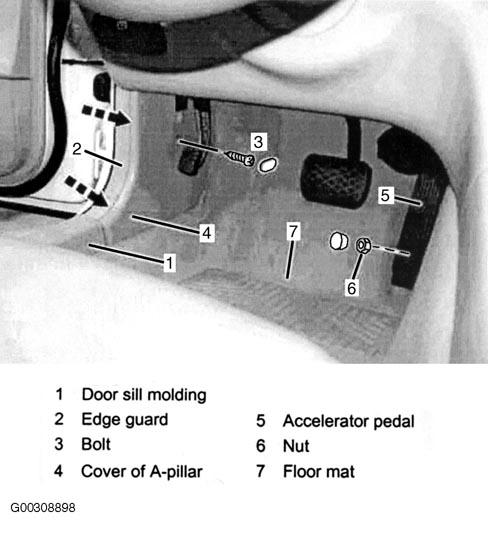

- Remove front floor covering to facilitate removal of parking brake cable. See Fig 3 .
- Remove cover below instrument panel. See COVER BELOW INSTRUMENT PANEL .
- Remove cover (71a) of parking brake pedal (75).
- Remove brake cable (85) from parking brake pedal (75) using snap release tool.
- Remove heat shield of exhaust system.
- Unclip brake cable (85) and remove. Destroy clips that are difficult to move when removing cable.
- Installation is the reverse of removal. Replace destroyed clips. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS . Adjust parking brake. See PARKING BRAKE under ADJUSTMENTS.
