Prepare window for installation - AR67.10-P-1000-03P

Not valid for model 240

The cutouts for the ground connections (1, 2, 3, 4) on the rear window to the body should be coated with primer. e.g. from the 2-component repair kit for glazing glued window (see arrows).

Shown in rear window, model 203.0

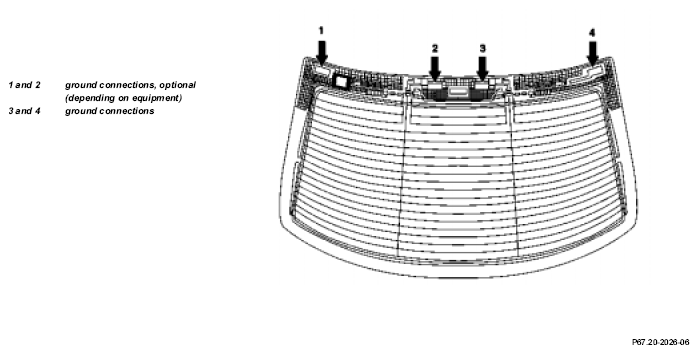

Fig 1: Locating Ground Connections - Shown In Rear Window, Model 203.0

1. Check window for scratches and damage.
2. Cut off remaining glue on window down to approx. 2 mm.

   Only when using previously installed window

3. Pull off loose adhesive material (remaining pieces which are not completely cut off).

   Only when using previously installed window

4. Clean window with cleaning rag from repair set for glazing glued windows and rub dry with rag.

   When using a new window

5. Apply activator from repair set for glazing glued windows to window and also rub dry with rag.

   When using a new window

6. Repair damaged primer layer on window with primer from repair set for glazing glued windows.

   Only when using previously installed window

   Allow primer to air-dry for min. 10 minutes.

7. Apply primer from repair set for glazing glued windows to window in gluing area (maximum width 20 mm).

   Replacement windshields are generally delivered with a viewing window on the bottom left. If the sight window is not required, always coat this area on the inside with Betaprimer from the 2-component repair kit for glazing glued windows before installing the window.

   When using a new window

   Allow primer to air-dry for min. 10 minutes.
