Prepare body flange for installation of window - AR67.10-P-1501-01P

Fig 1: Identifying Cutting Blade (124 589 21 63 00)

Illustrated on model 171

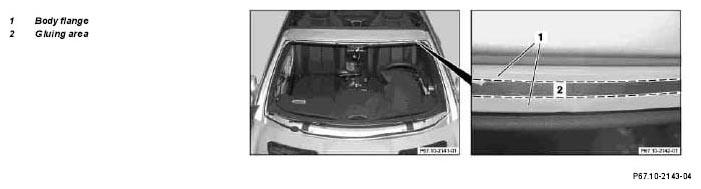

Fig 2: Identifying Body Flange And Gluing Area - Illustrated On Model 171

1. Clean painted adhesive surface on body flange (1) with cleaning rag and rub dry with dry rag.
2. Cut off remaining glue of body flange (1) with cutting blade.
3. If remaining glue on body flange (1) is damaged or missing in adhesive area (2), apply primer from 2- component repair kit for glazing bonded windows.

   Allow primer to air-dry for min. 10 minutes.

4. Repair paint damages on body flange (1) not covered by glue with primer stick

   To prevent adhesion disturbances when installing windows, ensure that the bonding surfaces on the body flange (1) are free of dust, oil, grease, wax, contamination residues and other adhesive substances.

   Leave a maximum of 2 mm. Pull off loose adhesive material (remaining pieces which are not completely cut off).
