Installing side window - AR67.30-P-2305-03PA

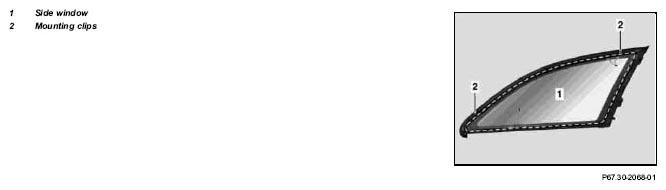

Fig 1: Identifying Side Window And Mounting Clips

1. Position suction cups on side window (1).
2. Align side window (1) on mounting clips (2) and position.
3. Press side window (1) on until mounting clip (1) catches on both sides.

The curing time (time before vehicle is driven) is approx. 1 hour from the time the window is installed.
