Cutting out window with cutting blade - AR67.20-P-3550-01PA

Risk of injury from slipping when clamping blade in the multicutter and from glass splinters when cutting out bonded windows

Always interrupt air supply when inserting or removing blade.

Wear protective gloves and eye protection.

Fig 1: Identifying Cutting Blade (124 589 02 63 00)

Fig 2: Identifying Cutting Blade (124 589 21 63 00)

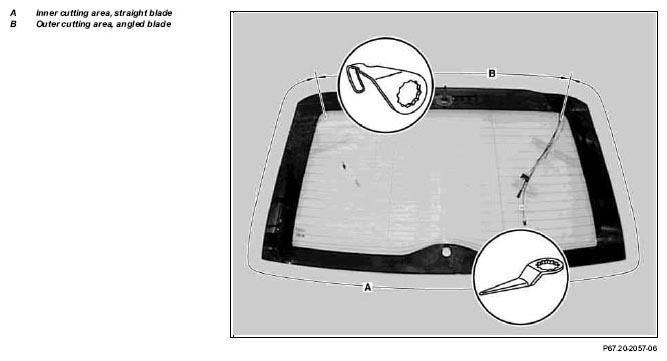

Fig 3: Identifying Inner And Outer Cutting Areas

Fig 4: Identifying Silicon Semi-Conductor And Ground Connections

1. Clamp straight blade into multicutter.
2. Moisten whetstone and sharpen both sides of blade with machine switched on.
3. Cut out rear window in area "A" from inside by moving blade as close as possible along body.
4. Clamp angled blade into multicutter.
5. Moisten whetstone and sharpen both sides of blade with machine switched on.
6. Cut out rear window in area "B" from outside by moving blade as close as possible along window.

   Silicon semi-conductors (1) for ground connections (2) between body flange and rear window can be damaged (see figure).
