Cutting out rear window with cutting blade - AR67.20-P-2000-02PB

Risk of injury from slipping when clamping blade in the multicutter and from glass splinters when cutting out bonded windows

Always interrupt air supply when inserting or removing blade.

Wear protective gloves and eye protection.

Fig 1: Identifying Cutting Blade (124 589 03 63 00)

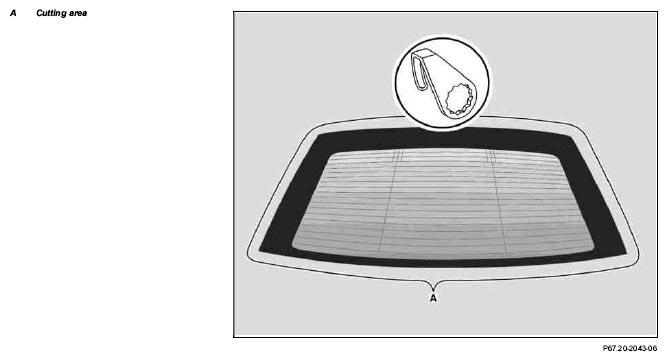

Fig 2: Identifying Cutting Area

1. Clamp blade into multicutter.
2. Moisten whetstone and sharpen both sides of blade with machine switched on.
3. Cut out rear window from outside in area "A".
