Cut side window out with cutting blade - AR67.30-P-4050-01PA

Fig 1: Identifying Cutting Blade (124 589 12 63 00)

Fig 2: Identifying Cutting Blade, Straight, Blade Length 35 mm (202 589 17 63 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1003-20A	Multicutter

1. Clamp blade into multicutter and adjust blade stop to a cutting depth of 16 mm 16
2. Moisten whetstone and sharpen both sides of blade with machine switched on
3. Cut rear side window out from inside in area "A".
4. Clamp blade 202 589 17 63 00 in multicutter.
5. Moisten whetstone and sharpen both sides of blade with machine switched on
6. Cut rear side window out from inside in area "B".

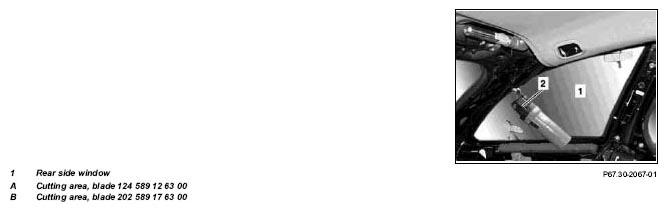

   Fig 3: Identifying Rear Side Window And Cutting Areas
