Apply glue - AR67.10-P-1000-08PA
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-20A | Electric cartridge gun |

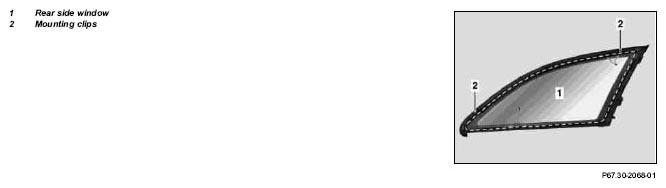

- Move nozzle along adhesive surface of rear side window (1) and thereby apply glue.
Install rear side window (1) within five minutes before adhesive force of glue starts to decrease
Completely press out glue residues not required immediately following application (disposal).
Height of glue bead approx. 13 mm.
