Aligning window in body opening - AR67.20-P-3550-04PA

TEST VALUES FOR REAR WINDOW

Number	Designation		Model 203.2
BE67.20-P-1002-01E	Interval between bottom edge of rear window and edge of tailgate paneling	mm	2

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

1. Before applying glue position window (1) on body opening.
2. Center window (1) at side.
3. Adjust distance between bottom edge of window and edge of tailgate paneling.
4. Glue on adhesive tape (arrows) and cut through at top edge of rubber channel.
5. Remove window (1) again.

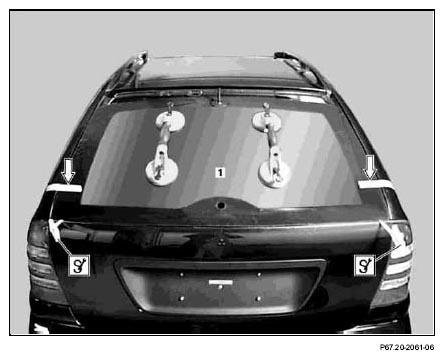

   Fig 2: Identifying Adhesive Tape On Window
