Aligning rear window in body opening - AR67.20-P-2000-04PB
MODIFICATION NOTES
| 18.1.01 | Value changed from 2.5 (± 0.5) mm to 2 (± 1) mm Value changed from 2 (+0.5) mm to 2 (± 1) mm Value changed from 9.5 (±0.5) mm to 9 (±1) mm. Value changed from 7.5 (±0.5) mm to 7 (±1) mm. |
Value changed in BE77.20-P-1007-01A for model 203.7 | *BE77.20-P-1007-01A |
TEST AND ADJUSTMENT VALUES FOR SLIDING/POP-UP ROOF
| Number | Designation | Model 203.7 | ||
|---|---|---|---|---|
| BE77.20-P-1007-01A | Gap dimensions | Wind deflector to sliding/pop-up roof | mm | 2 (±1) |
| Sliding/pop-up roof to glass roof, rear | mm | 2 (±) | ||
| Glass roof, rear, to rear window | mm | 9 (±) | ||
| Windshield to outer mounting clamp of trim strip | mm | 7 (±) | ||
TEST VALUES FOR REAR WINDOW
| Number | Designation | Model 203.7 | |
|---|---|---|---|
| BE67.20-P-1003-01E | Distance between rear edge of roof and rear window | mm | 9 (±1) |

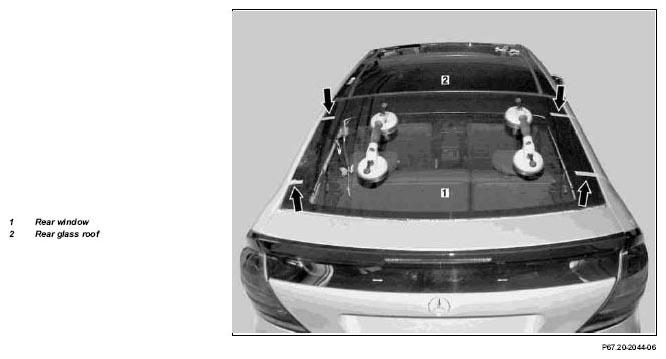

- Before applying glue, position rear window (1) on body opening.
- Center rear window (1) at side and adjust distance to glass roof or rear edge of roof.
- Glue on adhesive tape (arrows) and cut through at top edge of rubber channel.
- Remove rear window.
Illustrated with CODE (413) Panorama sliding roof
