Remove/install rear bumper - AR88.20-P-2200P

MODEL 203.0

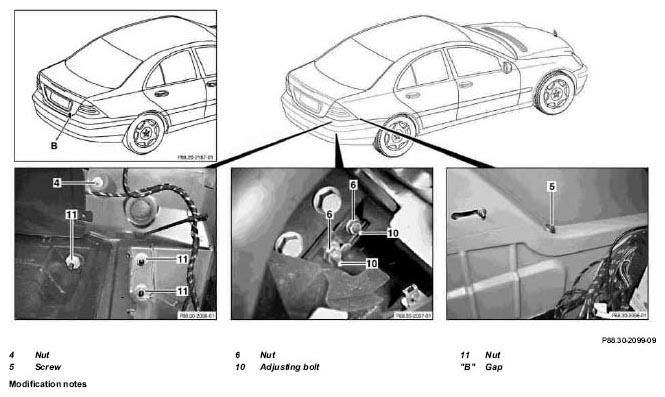

Fig 1: Identifying Rear Bumper Remove/Install Components - Model 203.0 (1 Of 2)

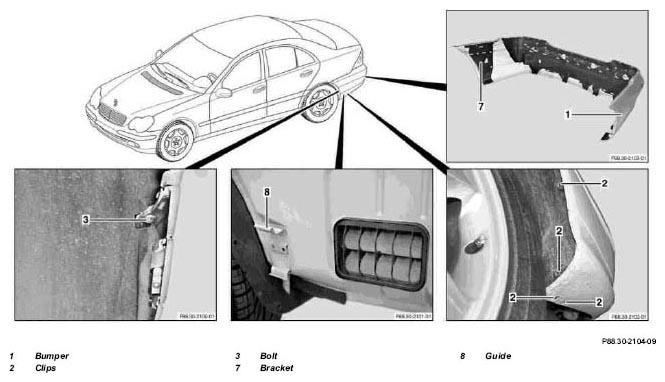

Fig 2: Identifying Rear Bumper Remove/Install Components - Model 203.0 (2 Of 2)

MODIFICATION NOTES

16.2.00

Value modified from 20 Nm to 6 Nm

Value modified in BA88.20-P-1002-02A Model 203

*BA88.20-P-1002-01A

	Remove
1	Remove coverings in trunk	Left and right side wall paneling and trunk floor paneling	AR68.30-P-4600P
2.1	Disconnect PTS connector, rear bumper (X35/28)	With code 220a (Parktronic system).
3	Remove clips (2) from inner fender and rear bumper
4	Unscrew screw (3).	Left and right side
5	Unscrew screw from rear exhaust mount
6.1	Unscrew nuts (4, 11) and screw (5)	Without code 550 (trailer hitch) Left and right side
6.2	Loosen nuts (6) on adjustment screw (10)	With code 550 (trailer hitch) Left and right side
7	Remove bumper (1)
	Install
8	Convert M-AMG bumper	Refer to installation instructions for accessories.
	Retrofit AMG paneling parts		AZ88.00-P-0001L
9.1	Install bumper (1)	Without code 550 (trailer hitch) When installing ensure that mount (7) are moved into guides (8) on left and right
9.2	Install bumper (1)	With code 550 (trailer hitch) When installing ensure that mount (7) are moved into guides (8) on left and right Move adjustment screws (10) into retaining sheet metal plates
10	Screw in screws (3)	Move bumper until edge of bumper (1) is flush with edge of rear fender. Check bumper gaps (1), correct if necessary. Left and right side	*BE88.20-P-1002-01A
			Figure
11.1	Screw in nut (4) and screw (5)	Without code 550 (trailer hitch) Left and right side
			*BA88.20-P-1005-01A
			*BA88.20-P-1009-01A
11.2	Screw in nuts (11)	Without code 550 (trailer hitch) Left and right side
			*BA88.20-P-1002-01A
12.1	Position nuts (6) and tighten	With code 550 (trailer hitch) Tighten nuts (6) only to point that it is possible to turn the adjustment bolts (10). Adjust uniform gap on bumper (1) with adjustment bolts (10).
13	Screw screw into rear exhaust mount
14	Press in clips (2)
15	Connect rear bumper PTS connector (X35/28)	With code 220a (Parktronic system).
16	Install paneling in trunk	Left and right side wall paneling and trunk floor paneling	AR68.30-P-4600P

BUMPER GAP DIMENSIONS

Number	Designation			Model 203
BE88.20-P-1002-01A	Dim.	Rear bumper, gap dimension "B"	mm	6
		Fig. see		AR88.20-P-2200P

BUMPER

Number	Designation		Model 203
BA88.20-P-1002-01A	Nut of rear bumper to rear center section	Nm	6
BA88.20-P-1005-01A	Bolt with sealing washer of rear bumper to side fender	Nm	8
BA88.20-P-1009-01A	Screw for bumper on side wall in area of taillamp	Nm	6

Fig 3: Identifying Feeler Gage (129 589 03 21 00)
