Remove/install outside mirror paneling - AR88.70-P-9040P

MODEL 203

Shown on model 203.0

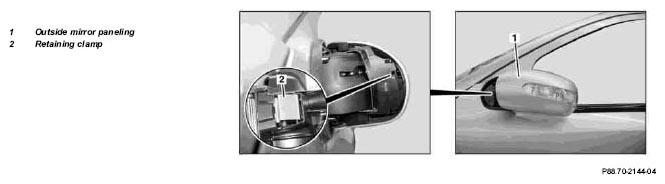

Fig 1: Identifying Outside Mirror Paneling Remove/Install Components

MODIFICATION NOTES

10.12.04

"Glue sliding tape to outside mirror" added

Step 4.1

	Remove/Install
1	Fold outside mirror toward rear	Installation:  Outside mirror should catch.
2	Press retaining clip (2) back with suitable tool and remove outside mirror paneling (1)
3	Install in the reverse order
	Risk of injury. Moving parts can pinch, crush or  , in extreme cases even sever  extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
4.1	Glue sliding tape to outside mirror paneling (1)	On vehicles with code (500) folding left/right outside mirror	AR88.70-P-9040-01P
			Figure
		Cleaner	*BR00.45-Z-1025-04A
		Slip band	*BR00.45-Z-1088-02A

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1088-02A	Slip band	A 211 811 00 96
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
