Install model plate on trunk lid - AR88.50-P-5050A

MODEL 202.01 /02 /03 /12 /13 /07 /08 /09 /18 /19, 203, 208.4, 209, 210.2, 215, 230.4

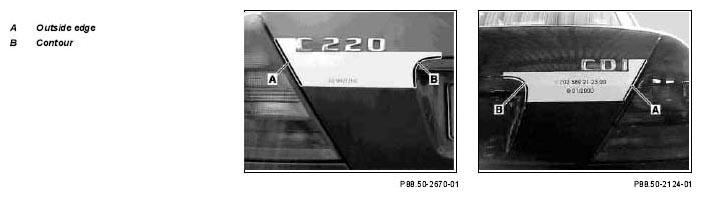

Shown on model 202.194

Shown on model 202.133

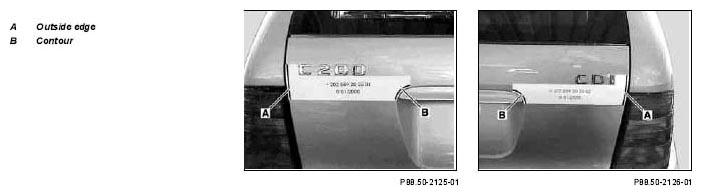

Shown on Model 203.0

Shown on model 203.2

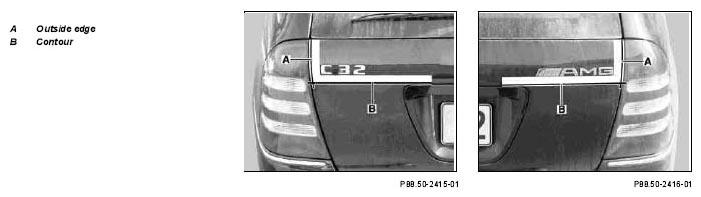

Shown on model 203.7

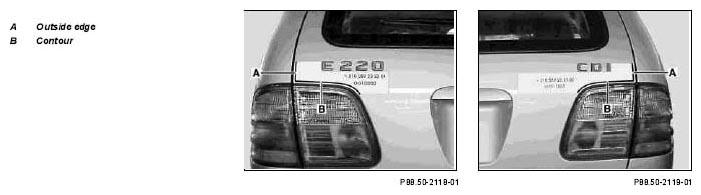

Shown on model 208.4

Shown on model 209

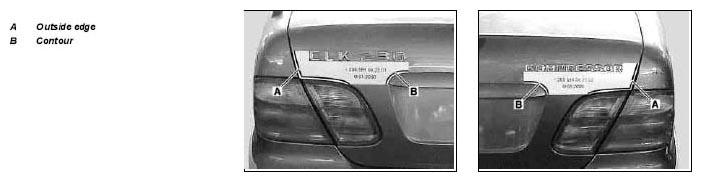

Shown on model 210.2

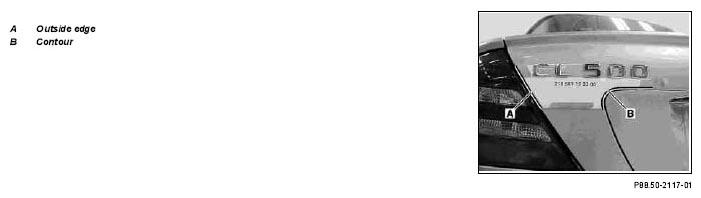

Shown on model 215

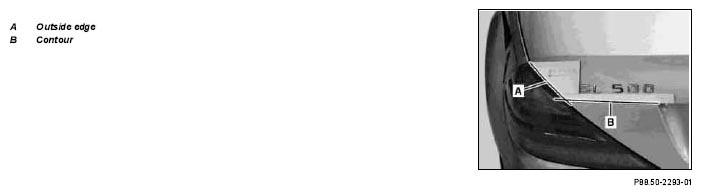

Shown on model 230

	Install model plate

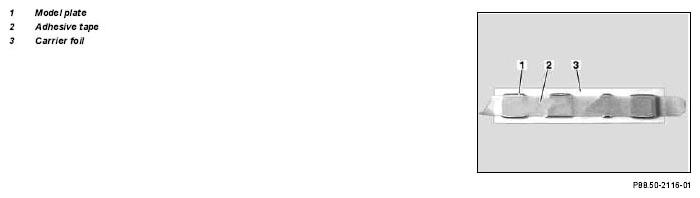

1	Check position of model plate (1) on carrier foil (3), correct if necessary.
2	Mask model designation (1) with adhesive tape (2).	To fasten individual letters and numbers of model plate (1).
3	Clean trunk lid in area of model plate (1) adhesive surface.	The adhesive surface must be absolutely free of dust and grease. Otherwise sufficient adhesion of model plate (1) is not ensured.
		Cleaner	*BR00.45-Z-1025-04A
4	Heat trunk lid in area of adhesive surface of model plate (1).	Heat adhesive surface to approx. 40 °C.
		Heat gun	*WH58.30-Z-1004-20A

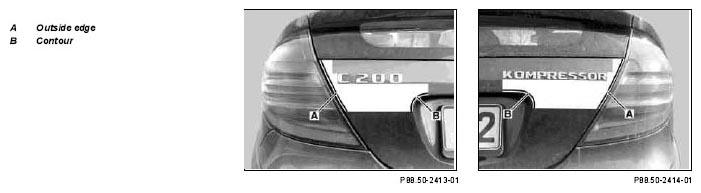

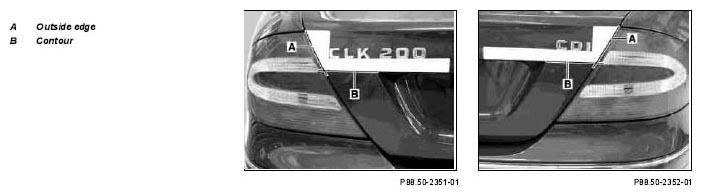

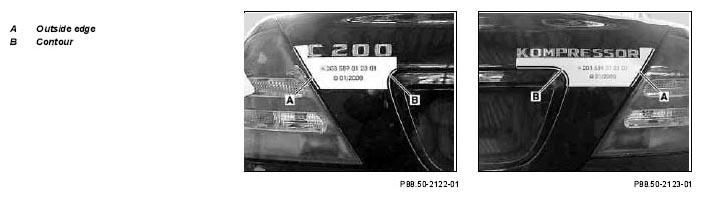

5	Install corresponding template on trunk lid or rear-end door and align on outer edge (A) as well as on contour (B).	On model 203.7, 215, 230.4: Fasten template with adhesive tape.
			Model 202.01/02/03/12/13
			Fig 13
		Model 202.07/08/09/18/19	Fig 14
		Model 203.0	Fig 12
		Model 203.2	Fig 15
		Model 203.7	Fig 16
		Model 208.4	Fig 17
		Model 209	Fig 18
		Model 210.2	Fig 19
		Model 215	Fig 20
		Model 230.4	Fig 21
			Fig 22
6	Remove carrier foil (3).	The individual letters and numbers of the model plate (1) should remain attached.
7	Align model plate (1) on template and press on.	If markings are present on the template, align model plate (1) according to lettering. Model 202.01/02/03/12/13
			Fig 13
		Model 202.07/08/09/18/19	Fig 14
		Model 203.0	Fig 12
		Model 203.2	Fig 15
		Model 203.7	Fig 16
		Model 208.4	Fig 17
		Model 209	Fig 18
		Model 210.2	Fig 19
		Model 215	Fig 20
		Model 230.4	Fig 21
			Fig 22
8	Remove adhesive tape (2).

Number	Designation
WH58.30-Z-1004-20A	Hot-air gun

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
